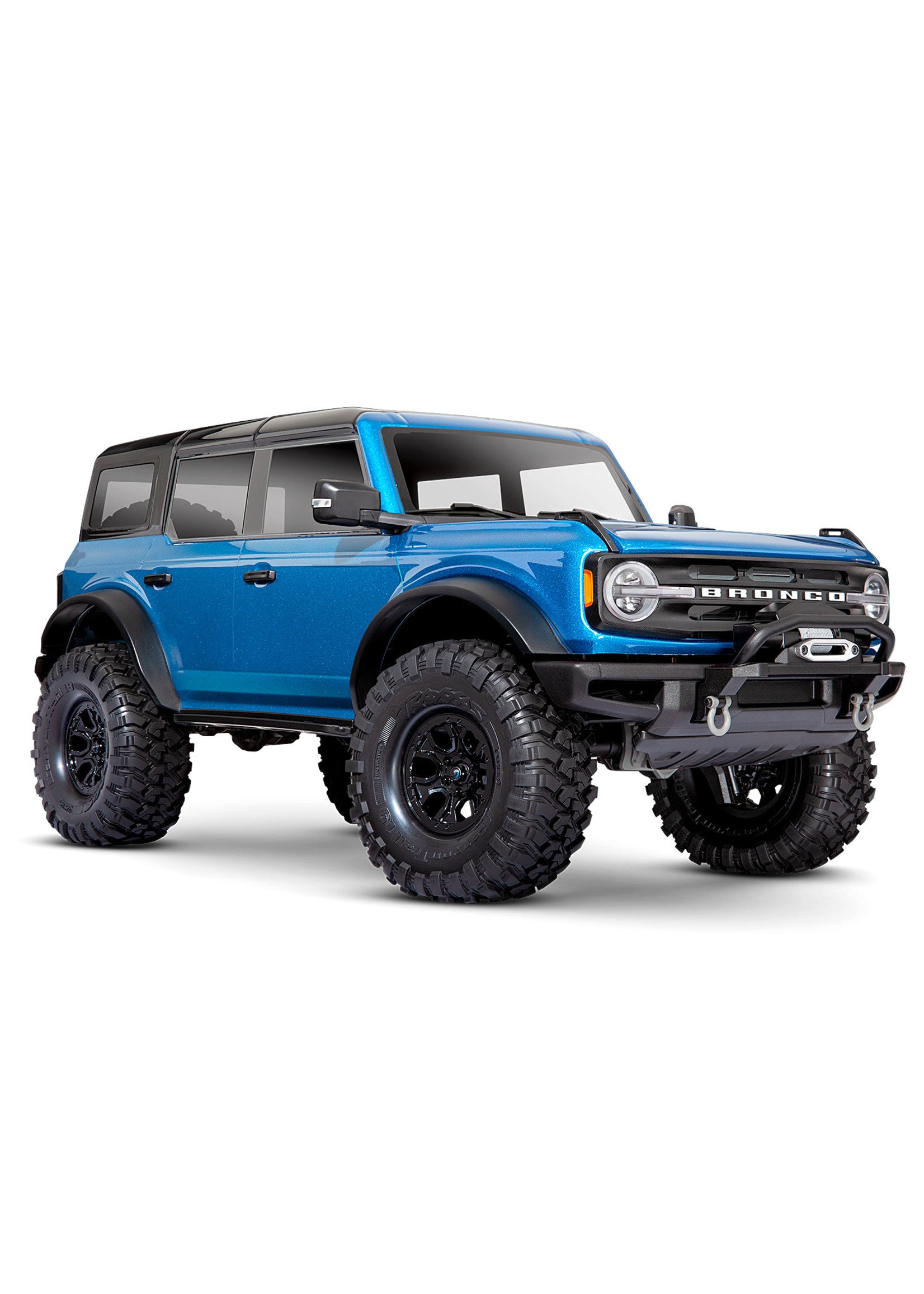

Trx-4 2021 Bronco Crawler Blue (1/10) - 92076-4-Vblu

Some vehicles may have been removed from their box for display purposes only - they have NOT been turned on

MODEL 92076-4: TRX-4 Scale and Trail® crawler with Ford® Bronco body: 1/10 scale 4X4 trail truck, fully-assembled, waterproof electronics, Ready-To-Drive®, with TQi™ 2.4 GHz 4-channel radio system, XL-5™ HV speed control, high/low transmission, remote locking differentials, and painted body.

What’s In The Box:

• TRX-4, Ready-To-Race model
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQi 2.4 GHz radio system with cruise control
• High quality maintenance tools

What You’ll Need:

• Batteries - TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
• Charger - Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).
• AA Alkaline Batteries - Four AA alkaline batteries for the transmitter.

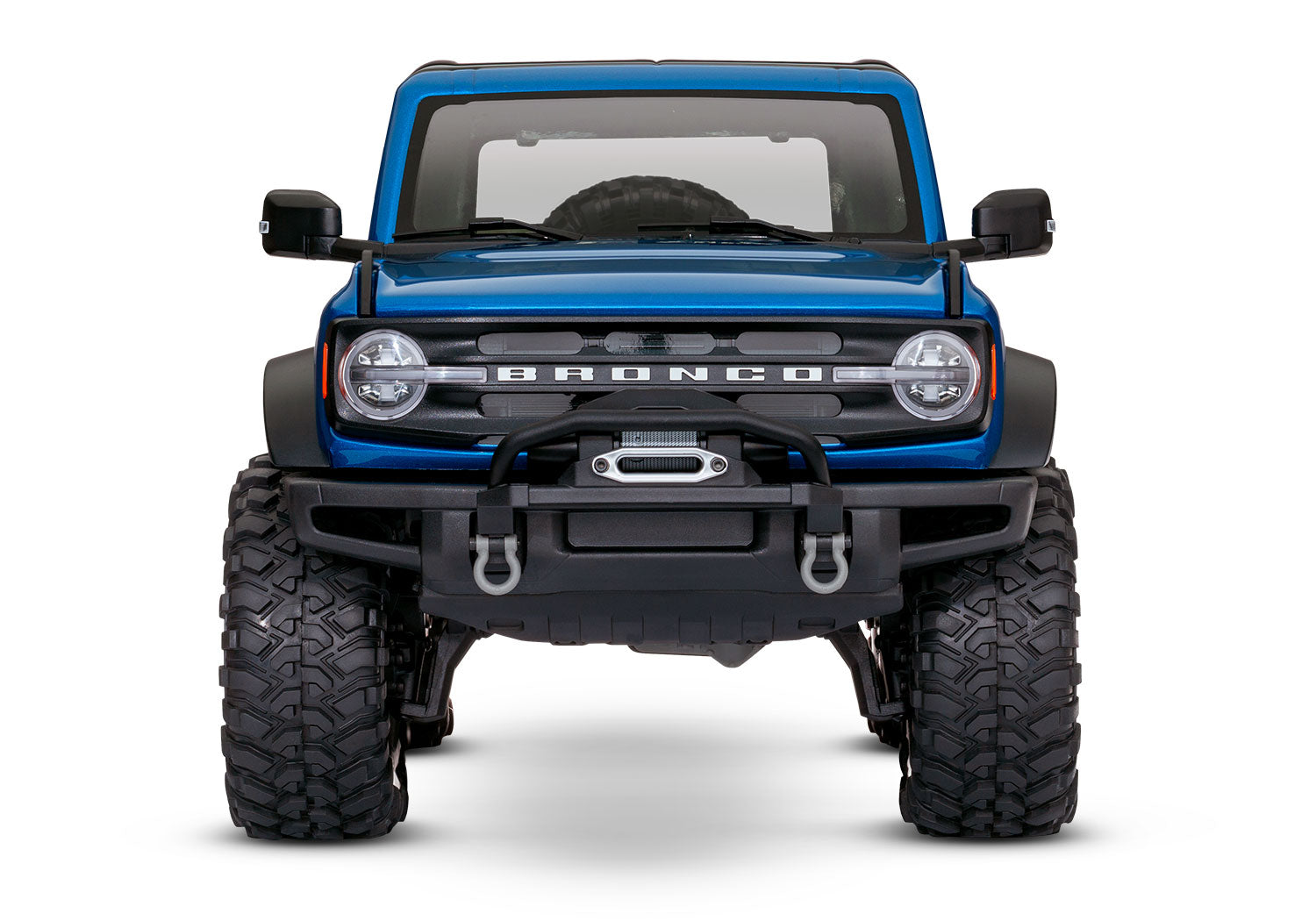

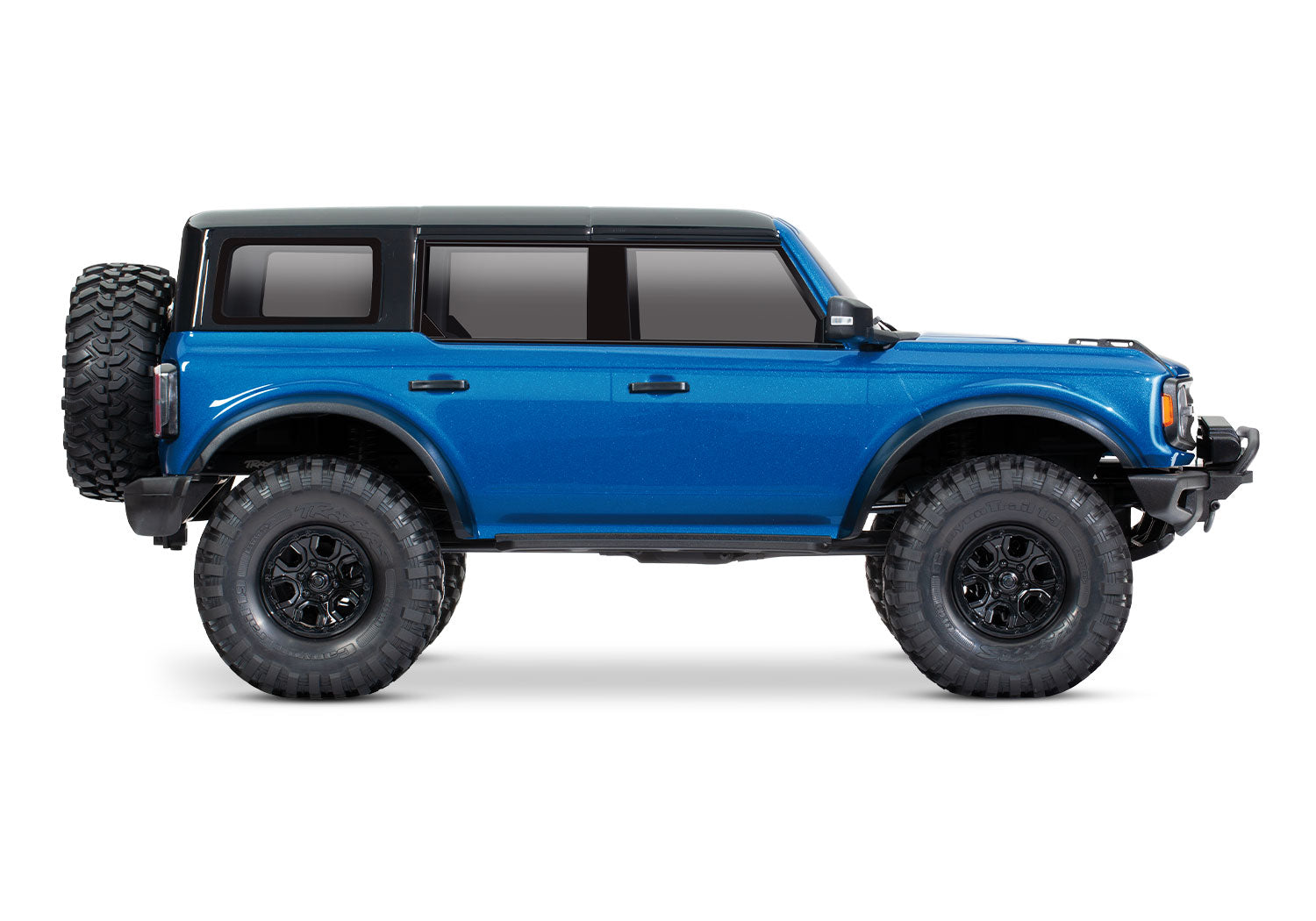

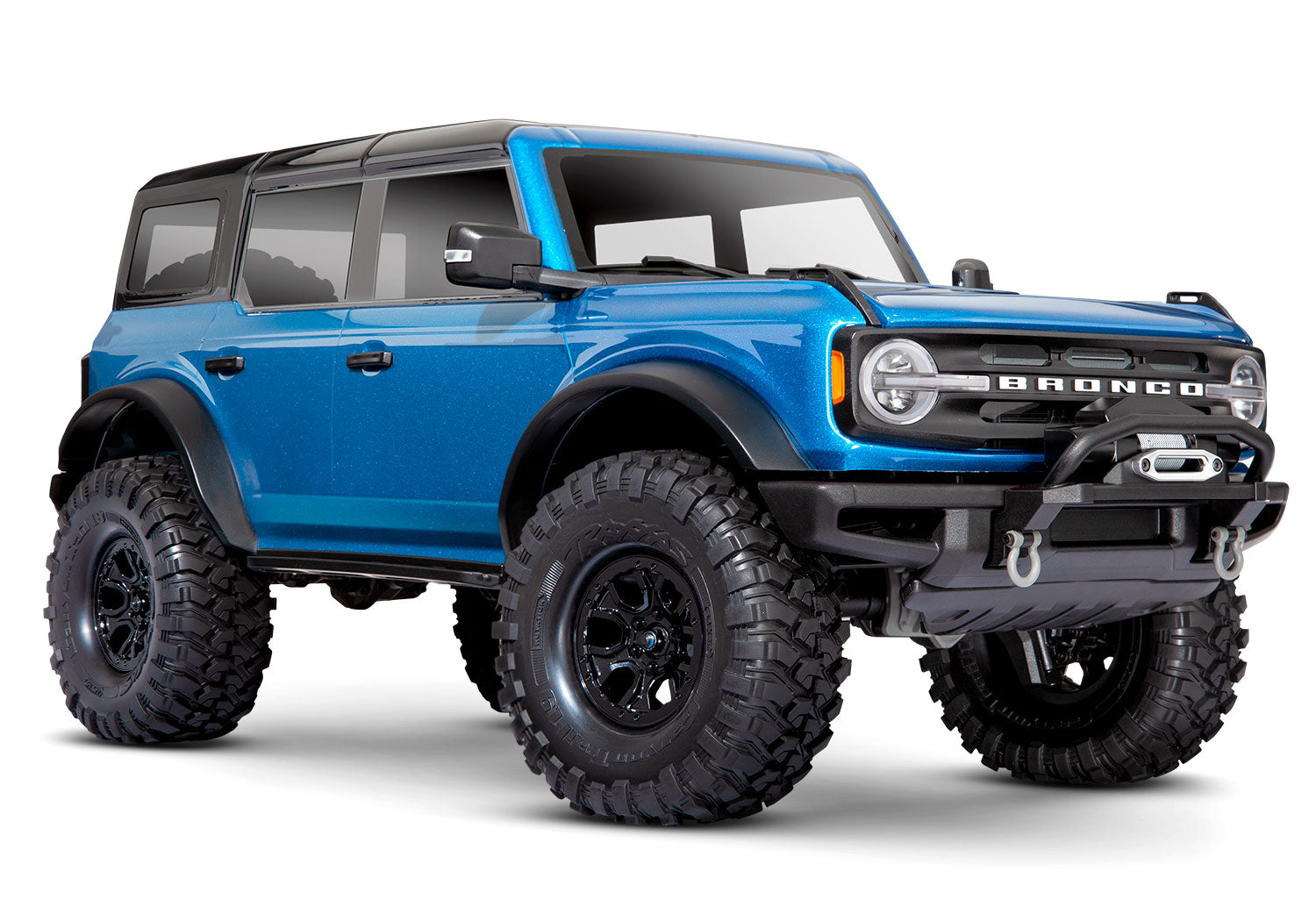

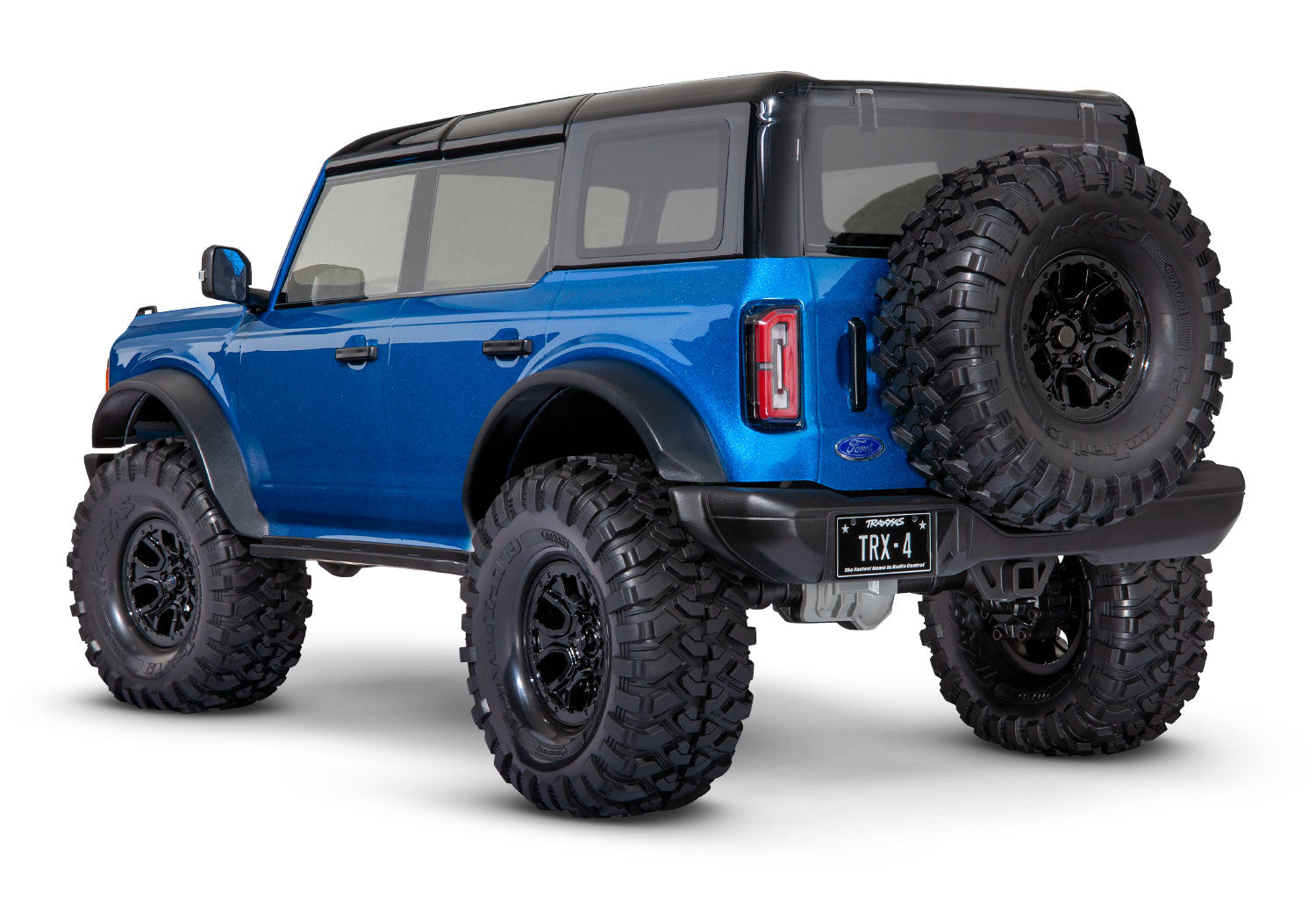

Officially Licensed 2021 Ford® Bronco Body

• Two-tone paint with black roof and clear windows
• LED-ready headlights and tail lights with multi-function capability
• Scale details
  • Black molded grille with white Bronco logo
  • Replica hood cowl w/ wipers and folding mirrors
  • Replica spare tire mount
  • Replica door handles
  • Tough PVC fender flares, wheel wells, and floor pans
  • Front and rear Bronco bumpers with skid plate and replica winch

Clipless Body mounting

• Clipless design for smooth body appearance
• Rugged internal body cage for added rigidity
• Body details mount directly to internal frame

Trail-tuned XL-5™ HV Waterproof Electronic Speed Control

• Fully waterproof design
• Five drive profiles
  • Sport Mode — forward / brake / reverse
  • Race Mode — forward / brake / no reverse
  • Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
  • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
  • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
• Two stage low voltage protection (LVD)

Titan® 550 Motor

• Powerful Titan 21T reverse rotation motor with internal cooling fan
• Precision, preset gear mesh adjustments
• Motor retention separate from gear mesh

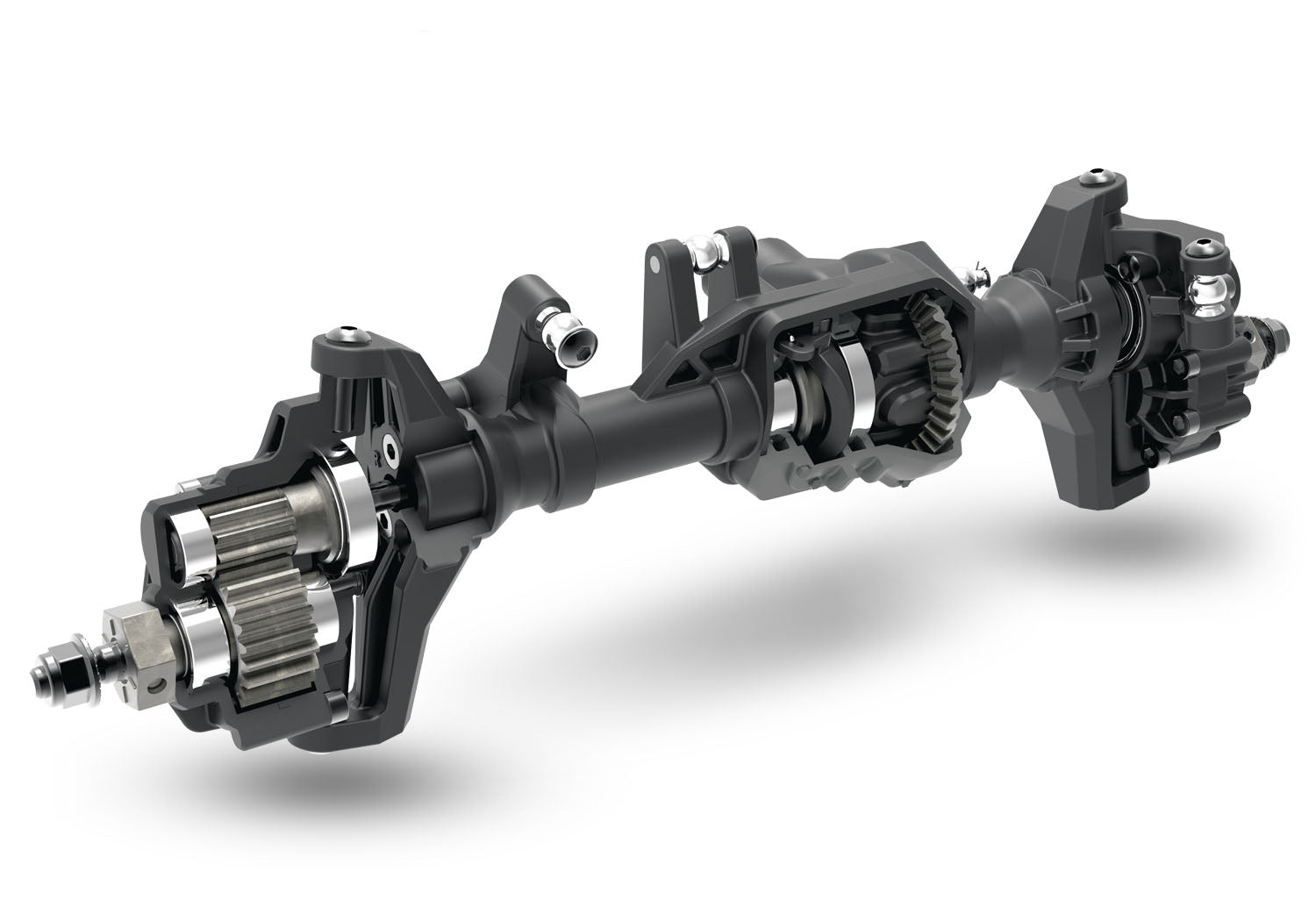

Portal Axles

• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts

TQi™ 2.4 GHz Radio System

• 4-channel transmitter
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Exclusive Cruise Control feature for extended trail driving
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle endpoints
• Patented waterproof receiver box with easy-access plug

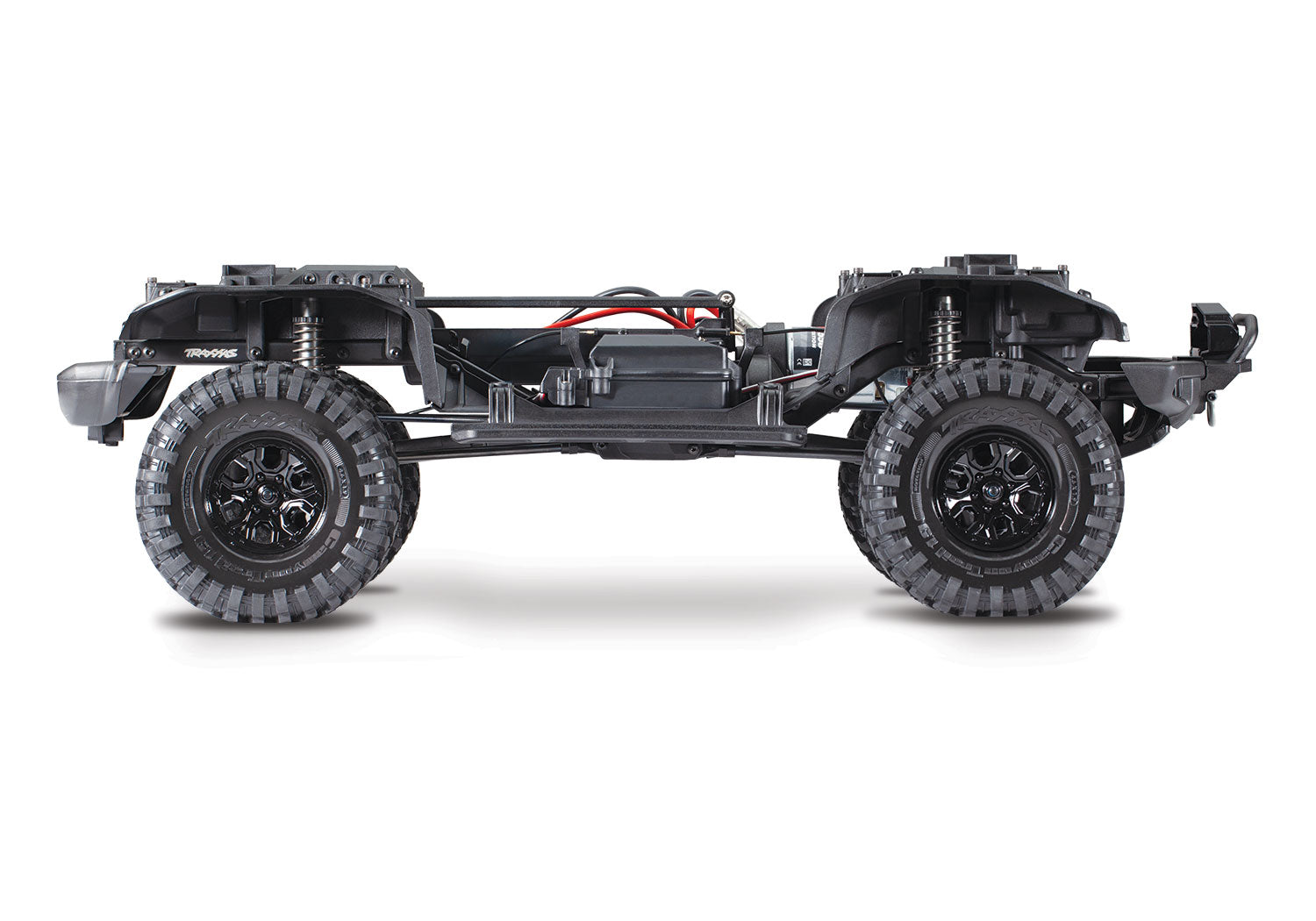

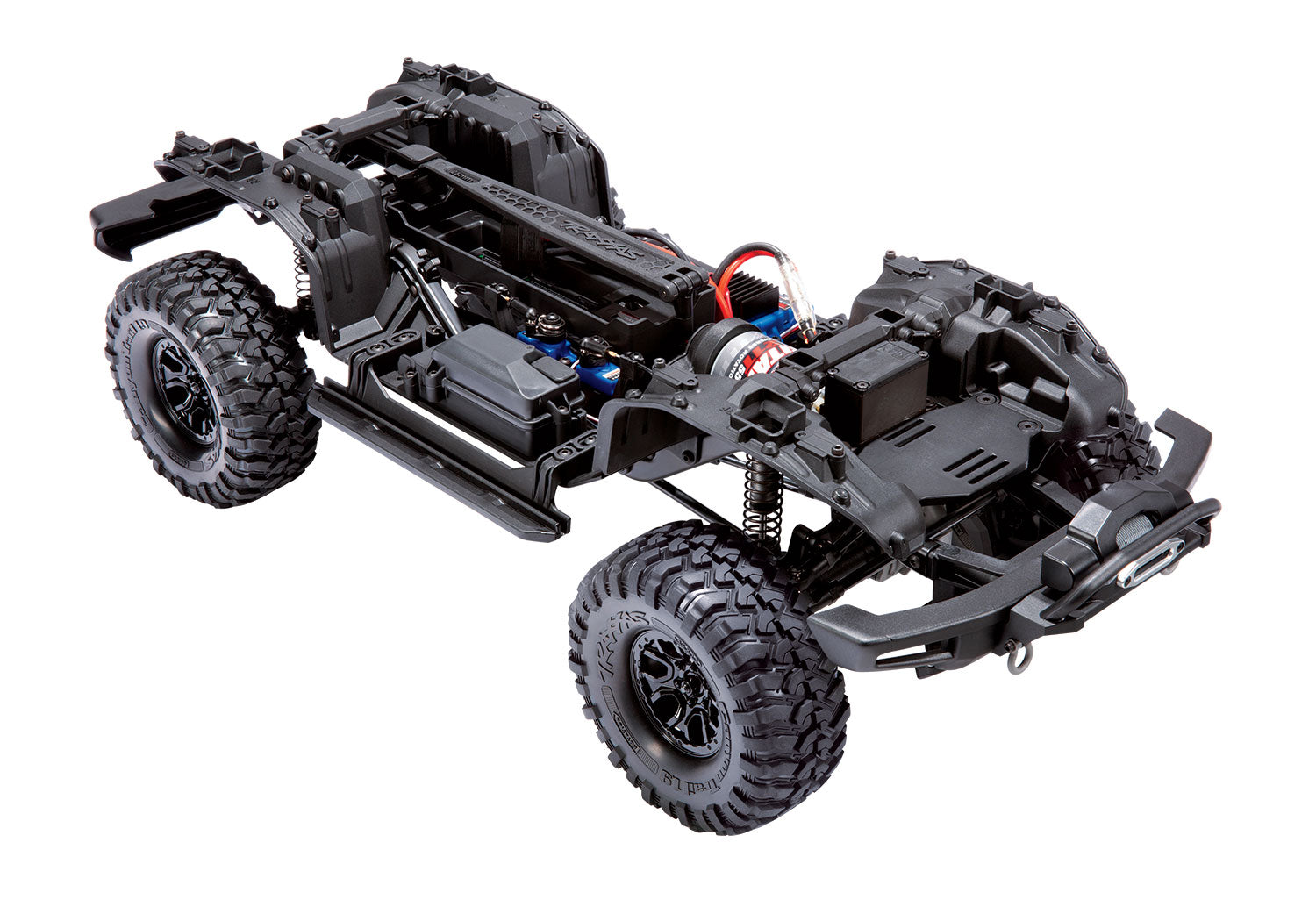

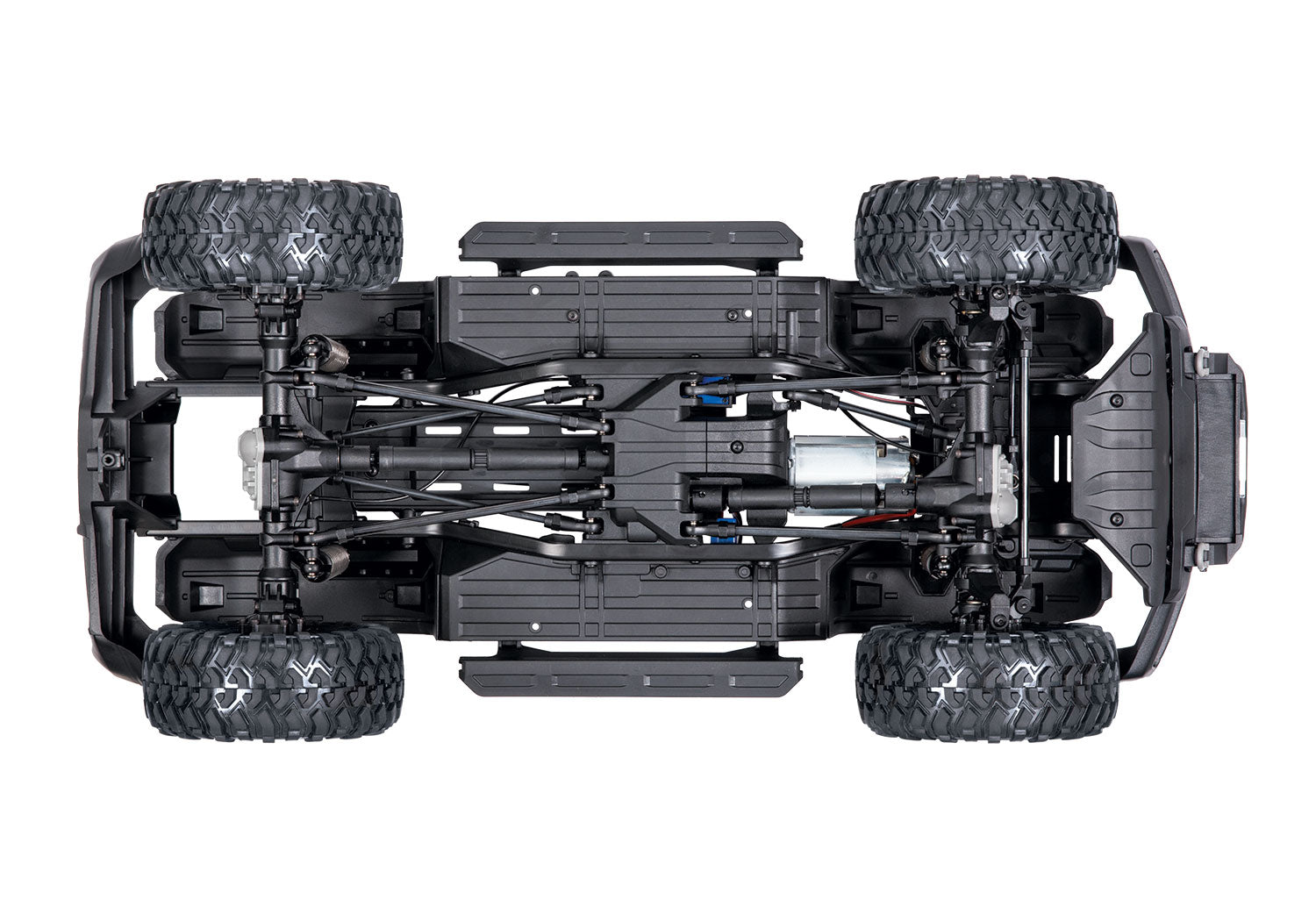

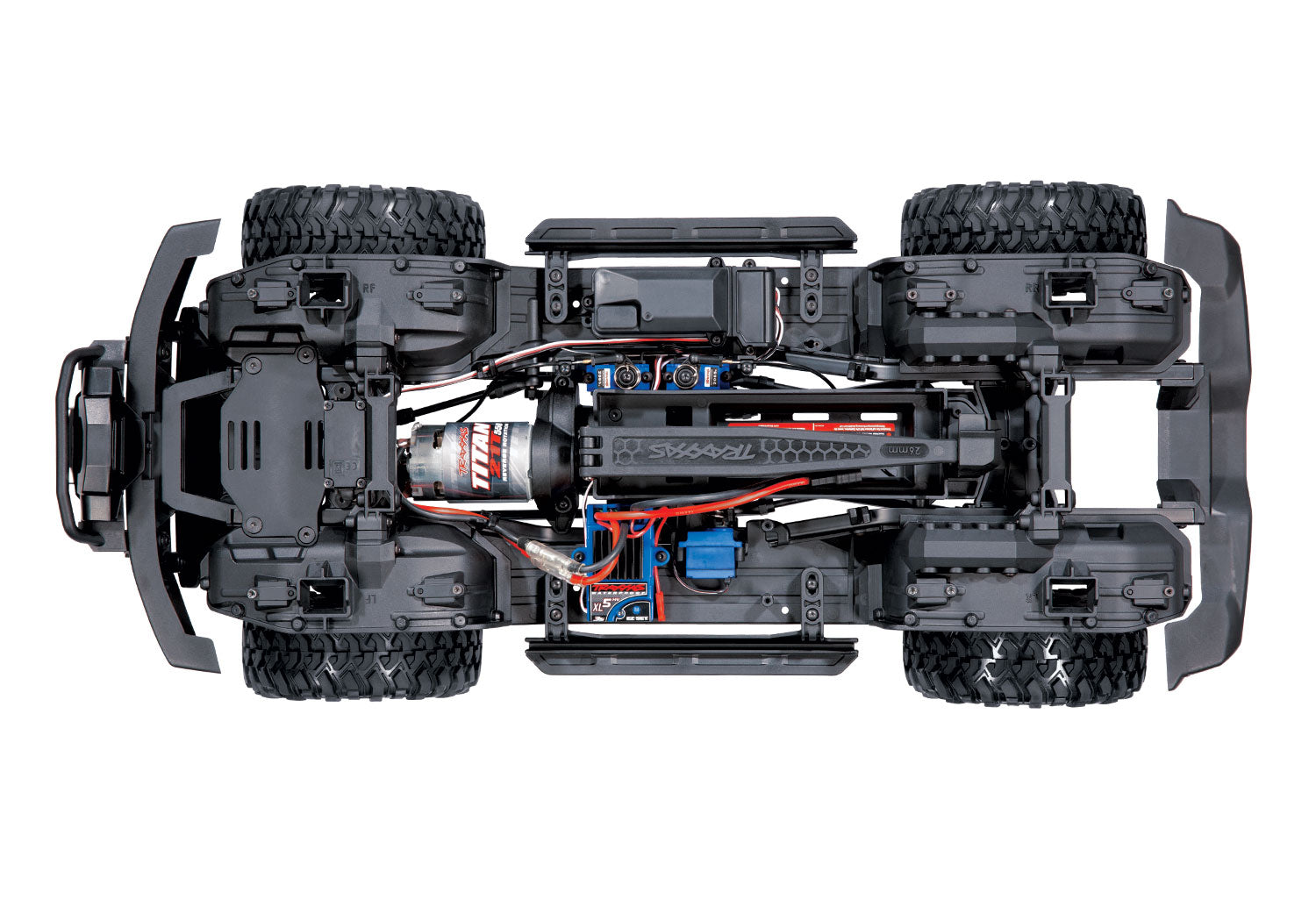

Rigid Steel Frame

• 1.5 mm thick steel frame rails increase torsional rigidity
• Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
• Adjustable rear shock tower positions for SWB and LWB configurations
• Bumpers adjust fore and aft
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails

Innovative Battery Compartment

• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
• Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

Drivetrain

• Full-time shaft driven 4-wheel drive
• Tough 6 mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts

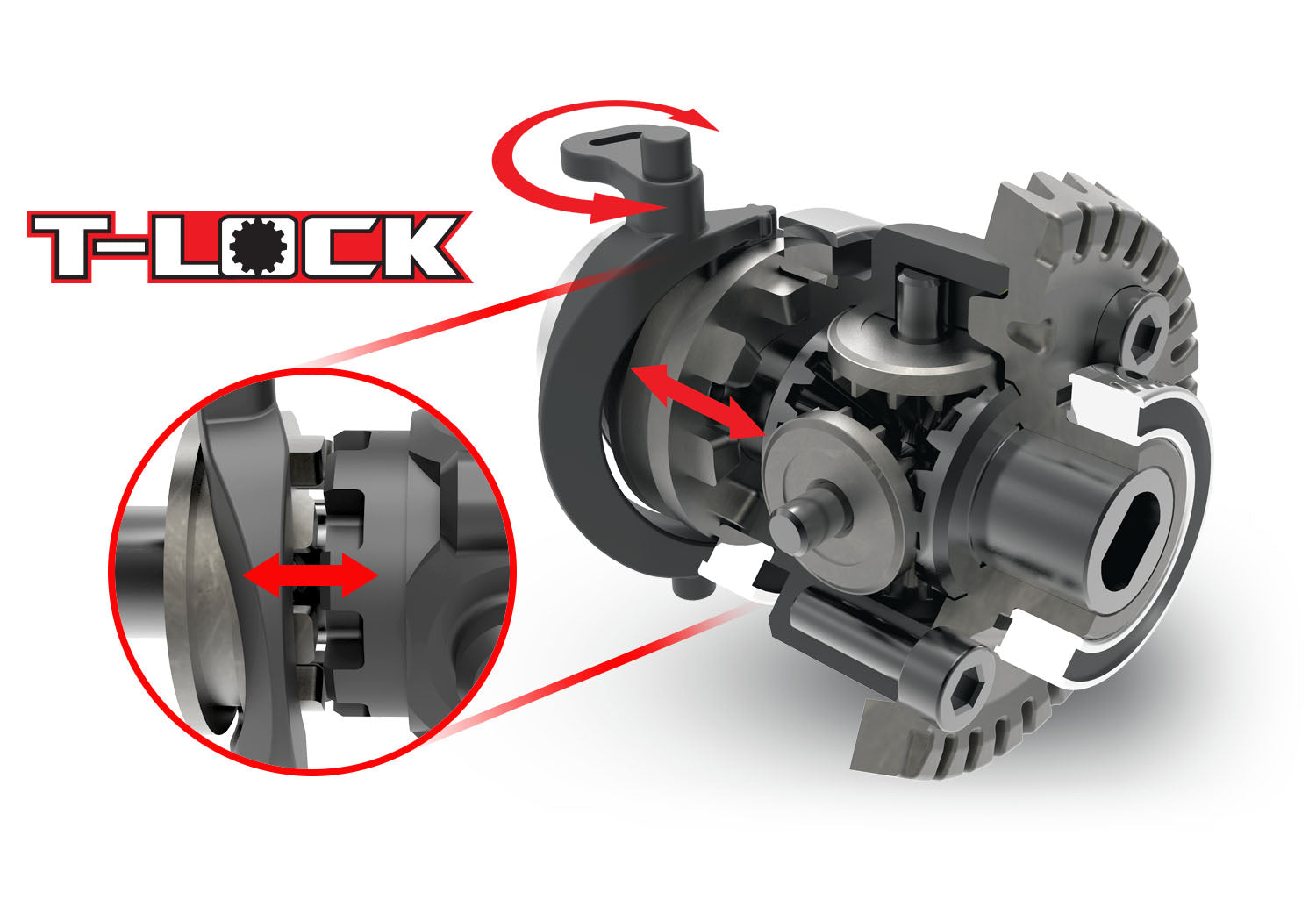

• Remote locking steel gear differentials with cable-actuation
• Steel gear transfer case

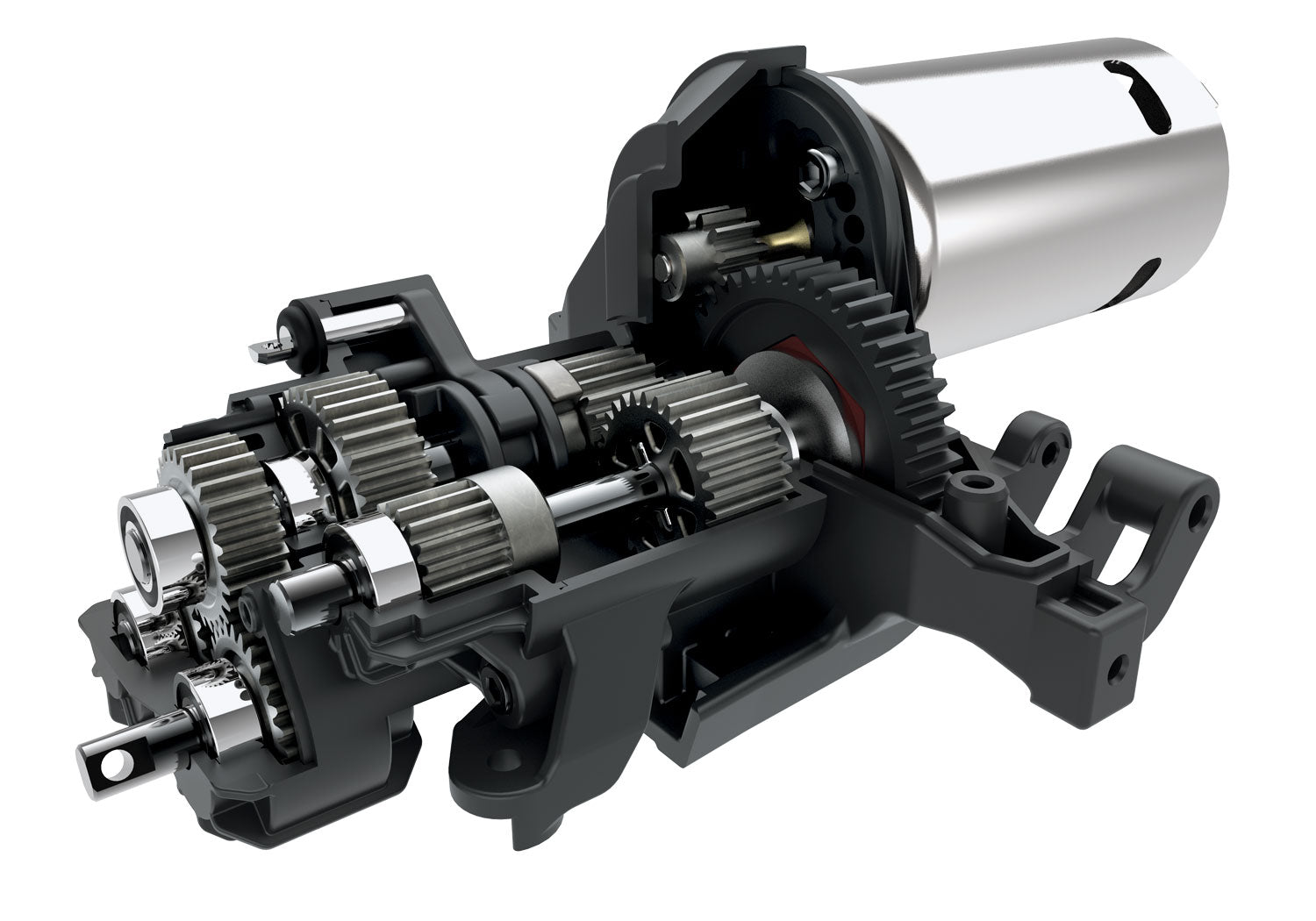

Transmission

• Two speed high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing

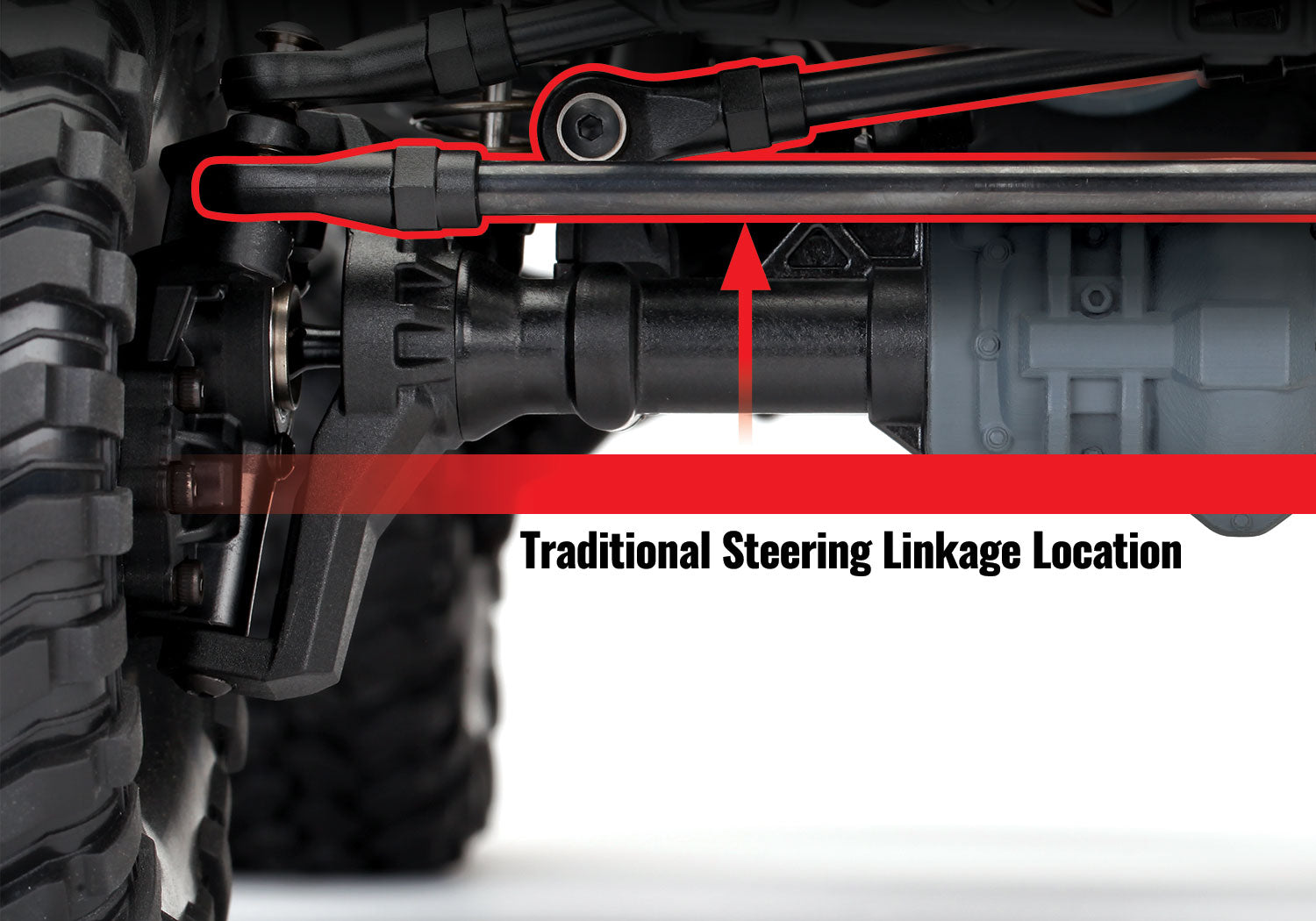

Steering

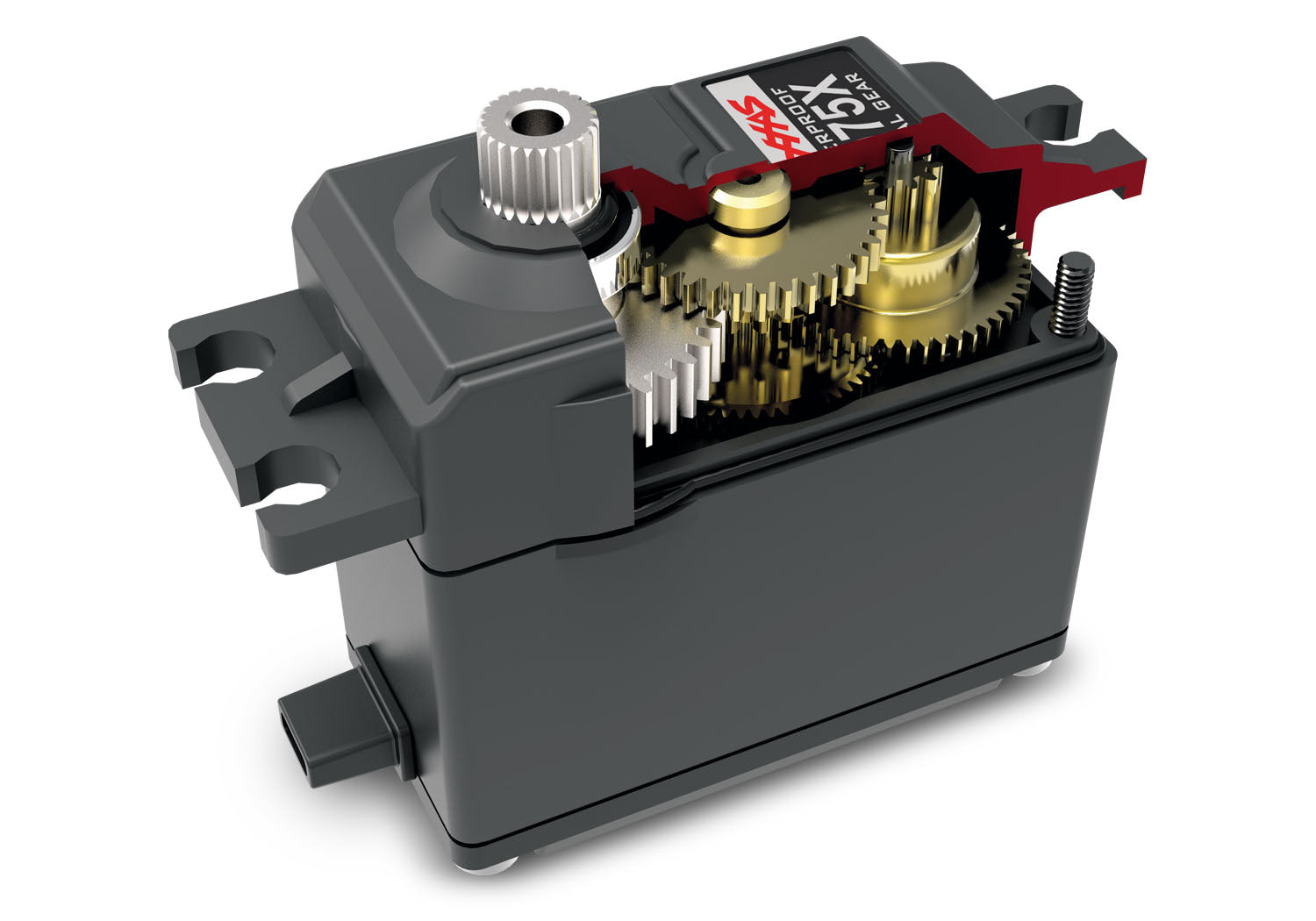

• Chassis mounted 2075X metal gear digital servo
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer

Suspension

• Front — 3 link with panhard
• Rear — Triangulated 4 link
• Heavy-duty rod ends with steel hollow balls

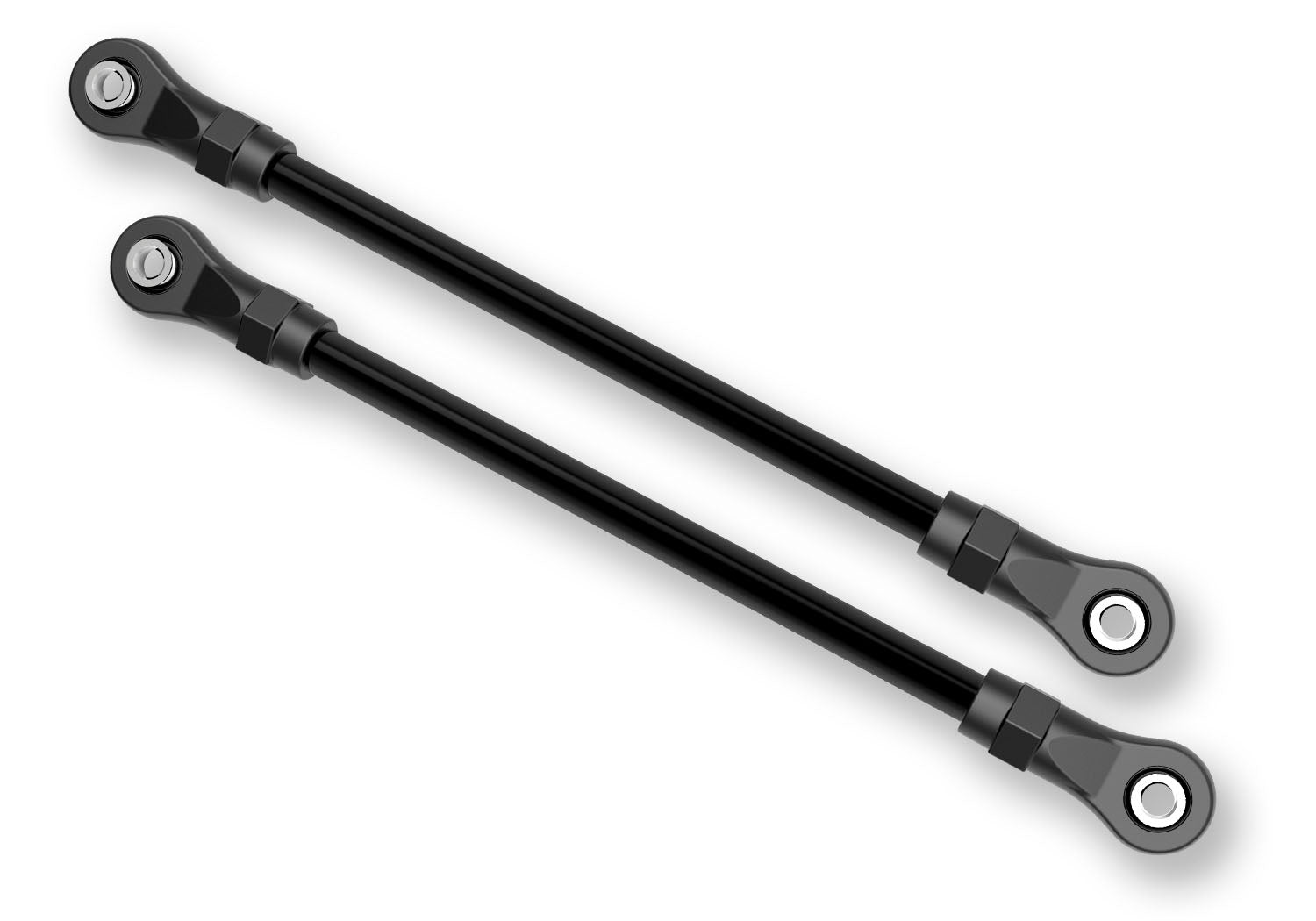

• 5 mm diameter steel link rods with 4 mm threaded ends

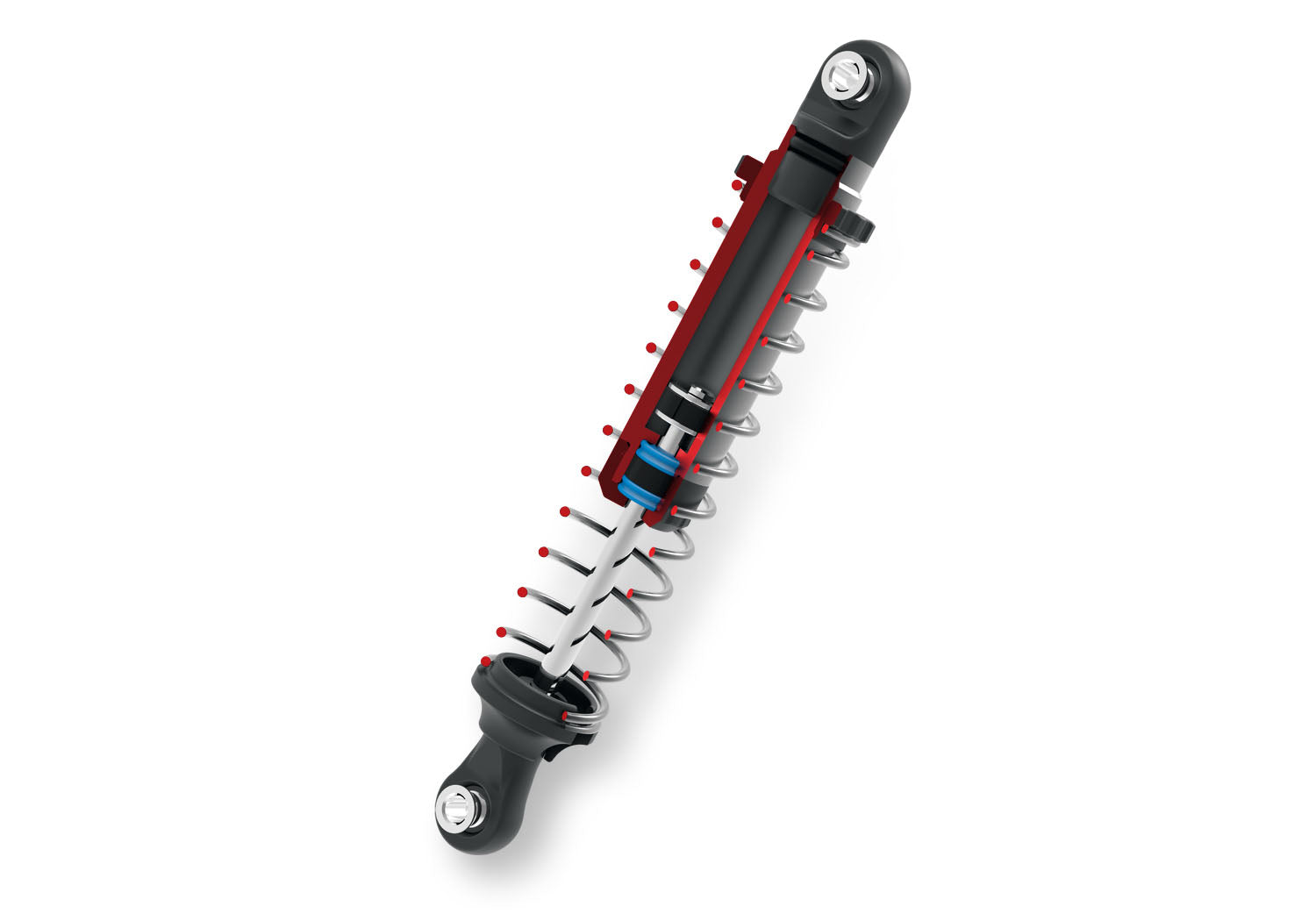

Aluminum GTS Shocks

• Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the toughest trails
• O-ring cap seal and dual X-ring shaft seals

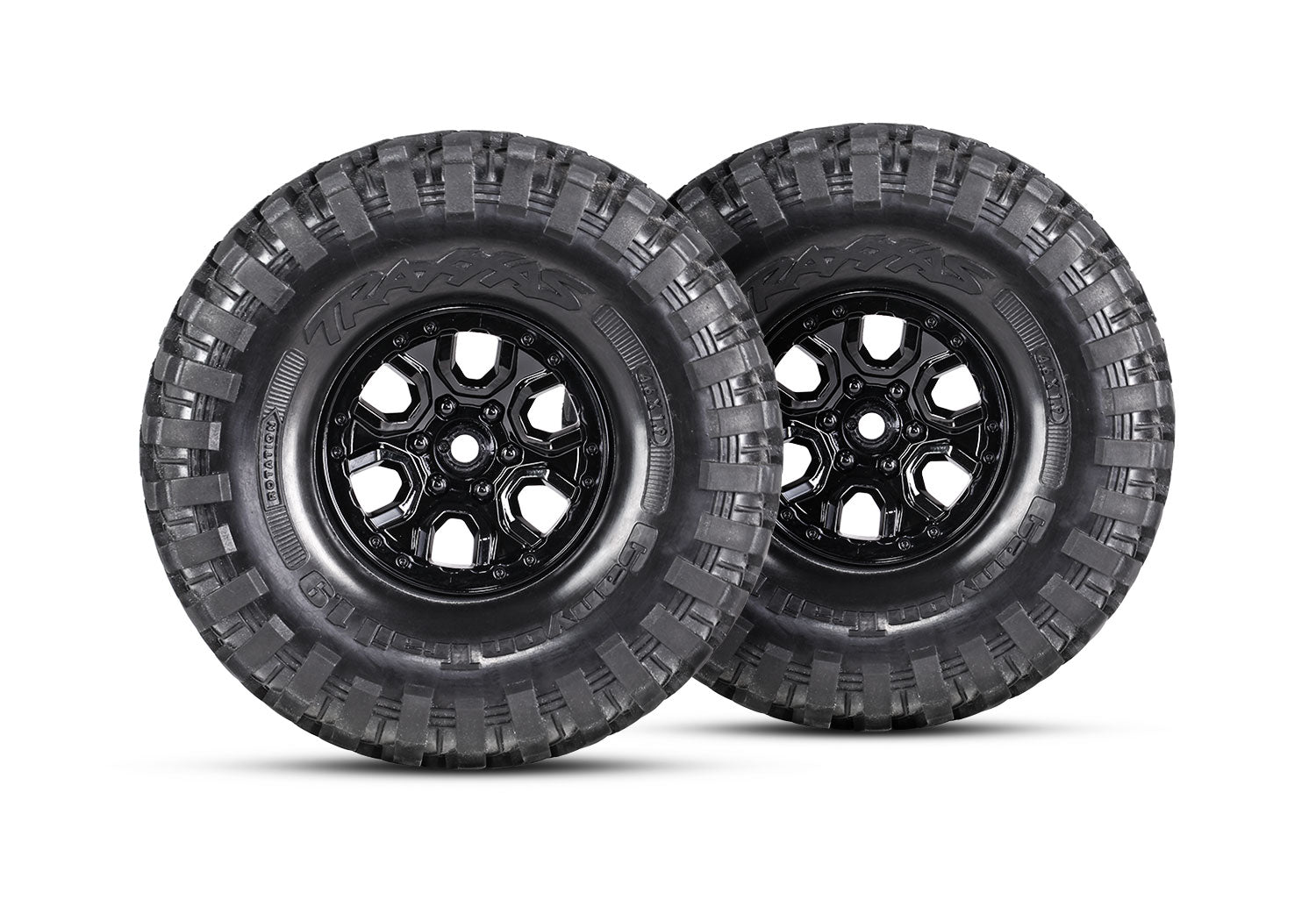

Wheels and Tires

• Replica black 2021 Bronco wheels
• Pre-mounted 1.9" Canyon Trail tires with trail-tuned foam inserts
• Trail tuned S1 rubber compound
• 12 mm steel hex

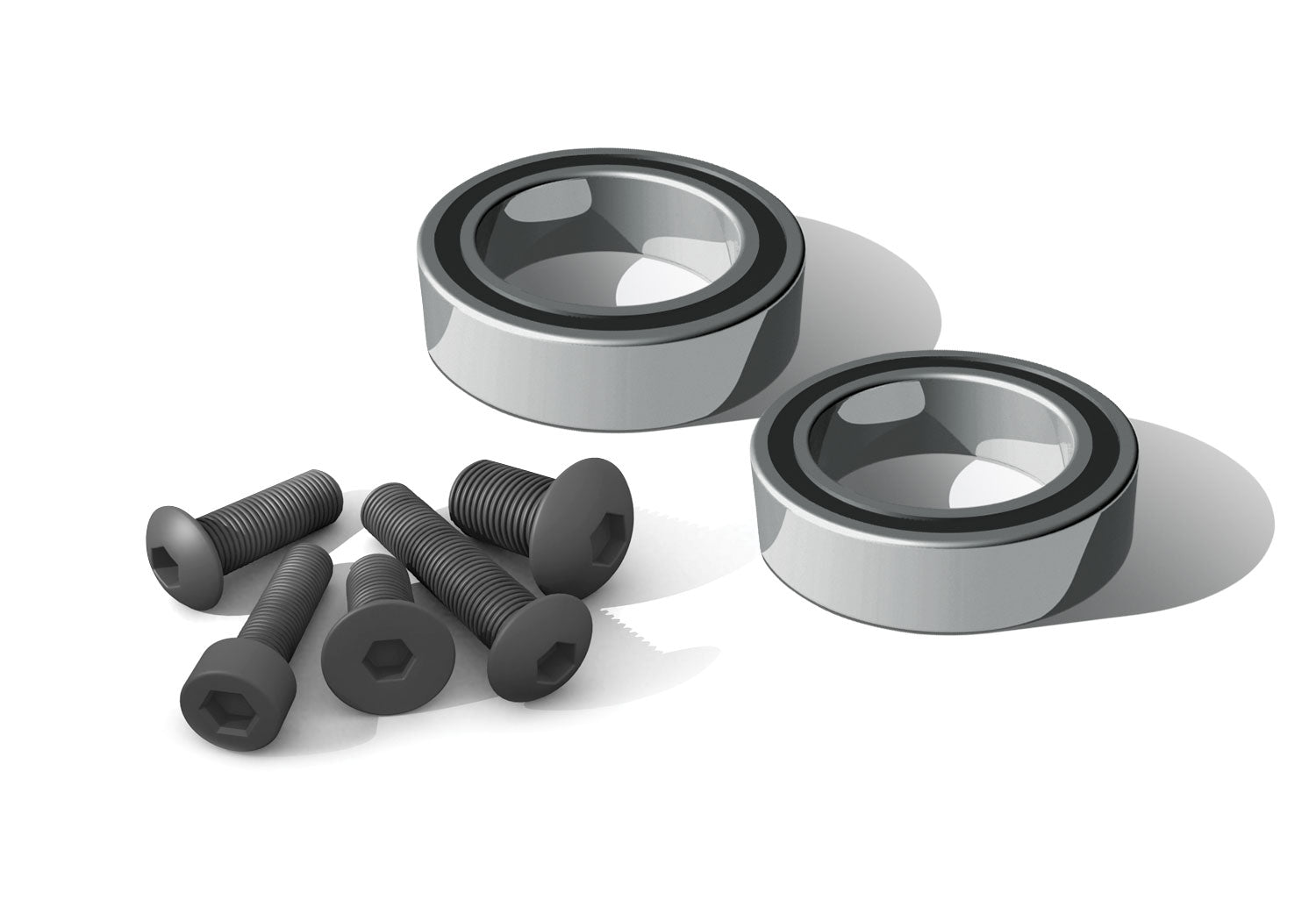

Sealed Ball Bearings

Hex hardware with rust-resistant black oxide coating

Requires Battery and Charger (Sold Separately
