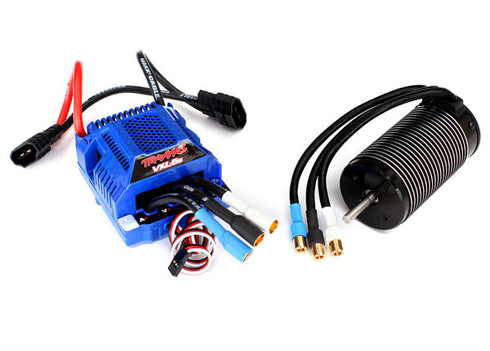

E-REVO 2.0 VXL-6S BRUSHLESS POWER SYSTEM TRA3480

This is the Velineon VXL-6s Waterproof Brushless Power System 2200Kv 75mm Motor/VXL-6s ESC by Traxxas

Key Features

• Integrated telemetry for speed, RPM, voltage, and ESC temperature
• Two-stage thermal shutdown protection with integrated cooling fan protects the VXL-6s from overheating
• Bright multi-color LED status lights provide clear feedback
• Built-in two-stage low voltage detection for Lithium Polymer (LiPo) battery use provides a clear signal to the
• driver that the batteries are nearing their minimum voltage threshold
• Wide range of battery options from NiMH packs up to 6s LiPo power
• The patented Training Mode™ is an exclusive Traxxas feature that reduces the overall power output of the VXL-6s by 50%, making it easier for inexperienced drivers to control their model. When you’re ready, simply change profiles to unleash full-throttle action
• The EZ-Set® push-button setup operates and programs just like other Traxxas speed controls—eliminating the need to learn a new set of procedures
• The VXL-6s is programmable with three drive profiles:Patented Traxxas High-Current Connectors eliminates a common bottleneck and maintain pure, unrestricted power flow from the batteries to the brushless power system
• Sport Mode – Fwd / Brake / Rev
• Race Mode – Fwd / Brake
• Training Mode** – 50% Fwd / Brake / 50% Rev
• Locked Rotor Protection™ prevents system damage by cutting power if the vehicle is stuck or the motor is bound Battery Over-Voltage Protection™ causes the ESC to go into failsafe mode if the maximum input voltage is exceeded Water resistant case design uses rubber seals and O-rings to protect against damage caused by water and moisture Gold plated 6.5mm bullet connectors on ultra-efficient Maxx® Cable flow full power to the motor without performance strangling resistance
• 4-Pole Sensorless Brushless
• 2200 RPM/Volt (KV)
• Efficient, High-Speed Ball Bearings
• TRX 6.5mm Gold-Plated Bullet Connectors
• Delivers more power than comparable brushed motors.
• Ultra high-temperature sintered Neodymium magnets provide massive torque and linear power.
• Consistent, high-power output, run after run
• Low-Maintenance, unique Traxxas Design
• Precision-balanced rotor.

Specs

• Input Voltage: 2x 2s/3s LiPo (Max 25.2 volts) 2x 7-cell/8-cell NiMH*
• Case Size: 2.23in (58mm) x 2.83in (72mm) x 1.81in (46mm)
• Weight: 206.5g (7.28oz)
• Motor Connectors: Traxxas 6.5mm Bullet Connectors
• On Resistance Forward: 0.00075 Ohms
• On Resistance Reverse: 0.00075 Ohms
• BEC Voltage: 6.0 V
• BEC Continuous Current: 10A
• BEC Peak Current: 20A
• Power Wire: 10-Gauge Maxx® Cable
• Input Harness Wire: 26 Gauge / 295mm
• Low Voltage Detection: 2-Stage indicators, switchable (on or off)
• Thermal Protection: 2-Stage thermal shutdown
• Sport Mode: 100% FWD, 100% BRAKES, 100% REV
• Race Mode: 100% FWD, 100% BRAKES, NO REV
• Training Mode:** 50% FWD, 100% BRAKES, 50% REV
• Single-Button Setup: Yes, Traxxas EZ-Set®
• Battery Input Connector: Traxxas High-Current Connector
• Motor Types: Brushless
• Ports: RX input, auxiliary fan, Traxxas accessory port
• Type: Sensorless Brushless
• RPM/Volt (Kv): 2200 Kv
• Length: 77.5mm (3.05")
• Diameter: 41.8mm (1.65")
• Connector Type: Traxxas 6.5mm Bullet Connectors
