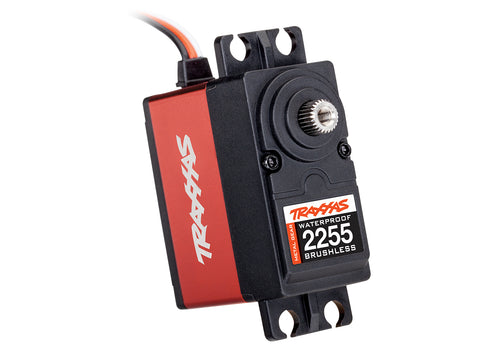

DIGITAL HIGH-TORQUE BRUSHLESS SERVO 2255

The Traxxas 400 High Torque Metal Gear Waterproof Brushless Servo combines maximum steering authority with a long list of high-performance features. The servo utilizes full metal gears, dual ball bearings, and an aluminum center section for added heat dissipation. A cutting edge brushless motor provides 400 ounce-inches of torque for extreme applications.* The High-Torque 400 servo is fully waterproof, not just “water resistant” and drops into most 1/10 Traxxas vehicles for that perfect factory fit.

The Power to Perform

With over 3 times more torque than the standard #2075 servo, the High-Torque 400 provides noticeably faster turning speed and works great with TSM™ equipped vehicles. Traxxas High-Torque servos are the perfect upgrade for high-demand applications like Unlimited Desert Racer, Slash, Stampede, or almost any 1/10 Traxxas vehicle requiring extreme performance. Replace the E-Revo's dual servos with a single #2255 for lighter weight, more torque, and lightning-quick steering response. Elevate your steering performance to the next level with the High-Torque red 400 servo.

Waterproof Not "Water Resistant"

Traxxas knows the difference between “water resistant” and waterproof. Traxxas High-Torque servos are completely waterproof to give you the freedom to run when you want, where you want. Power through streams and bogs without fear while trucks with “water resistant” servos are stuck on the sidelines.

For TRX-4 Installation

The Traxxas High-Torque 400 Red servo represents a huge power upgrade for the TRX-4. When installing this servo, it is required that you use the High-Voltage BEC kit (TRA2262) and a steel servo horn (TRA8247X) is recommended. Installing the BEC is easy with plug and play simplicity. The kit includes a larger receiver box cover to maintain total waterproof integrity and a Y harness for vehicles with LED light kits.

NOTE:

*Compatible with most Traxxas 1/10 scale electric models

Compatible with TRX-4 models using High-Voltage BEC Kit #2262 and #8247X metal servo horn

Compatible with Traxxas nitro models using rechargeable 5-cell battery packs

Not recommended for X-Maxx

Features:

Factory fit for drop-in installation into Traxxas Models

Fully waterproof, not “water resistant”

Compatible with Traxxas Stability Management™ (TSM)

400 oz-in torque at 6.0V

0.15 sec/60° at 6.0V

Metal gears

Dual ball bearings

Brushless motor technology

Aluminum center case

Specifications:

Motor Type: Brushless

Operating Voltage: 6.0 - 7.4V DC

Speed: 0.15 sec/60° at 6.0V

Torque: 400 oz-in at 6.0V

Weight: 64g

Gears: Metal

Output Spline: 25T

Case: Plastic top/bottom, anodized aluminum center

Controller: Digital
